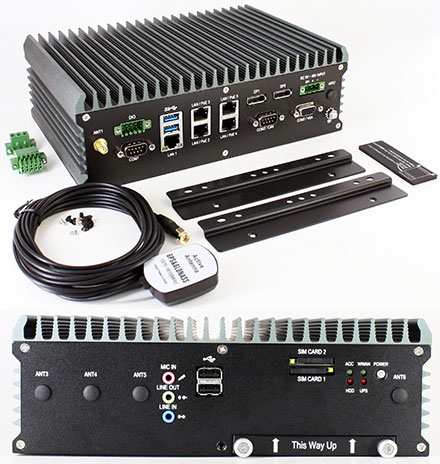

FleetPC-5-B Car-PC (AMD RX-216GD 2x3Ghz, 4GB RAM, Autostart-Controller, 9-48V Automotive Netzteil, GPS) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
FleetPC-5-B Car-PC (AMD RX-216GD 2x3Ghz, 4GB RAM, Autostart-Controller, 9-48V Automotive Netzteil, GPS) [<b>FANLESS</b>]
3D 360° View
  • Fanless !
  • Auto Power On/Off !
  • 5x LAN ! POE optional !
  • 2x RS232 !

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

The system has long-term availability. It is available until at least 2025.

For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash

The PC is completely fanless and is equipped with an AMD RX-216GD 2x3GHz CPU and 4GB RAM.

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots.
We recommend these modules:
- HSPA / UMTS / EDGE
[more]

Share

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

The system has long-term availability. It is available until at least 2025.

For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash

The PC is completely fanless and is equipped with an AMD RX-216GD 2x3GHz CPU and 4GB RAM.

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots.
We recommend these modules:
- HSPA / UMTS / EDGE / LTE 4G Mini-PCIe Modem (Huawei ME909s-120) -- with pigtail/antenna --
- Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo ZQ802XRACB] -- with pigtails/antennas --

Features :
- Fanless
- AMD RX-216GD Dual Core CPU 1.6GHz up to 3.0 GHz
- AMD Radeon Graphics
- GPS (VDB-810)
- 2x RS232
- 5x Gigabit LAN (2x Intel i210-AT + 3x Switched)
- 2x dP + 1x DSUB-15 VGA
- Watchdog
- Prepared for GPS, WLAN, GSM/GPRS with ext. antennas
- 4x DI / 4x DO with Relay 12V / 100mA
- Vibration/shock tested

Dimensions / Weight 229mm W x 161mm D x 65mm H, 1.4kg
CPU AMD RX-216GD Dual Core 1.6GHz up to 3.0 GHz
RAM 2x SO-DDR-4 RAM (up to 32GB) [1x 4GB RAM included]
Graphics AMD Radeon
GPS VDB-810
Expansion - 3x Mini-PCIe
- 1x M.2 A-E key 2230 slot
OS Support Windows 7/8/10, Linux
Vibration & Shock MIL-STD-810G
Operating temperature -40~70°C (with SSD)
Certification CE, FCC, E13
I/O - 2x Intel i210-AT; Ethernet Switch: 1x Marvell 88E6176 (+3x Port)
- 2x RS232/422/485
- 2x USB3.0 + 2x USB2.0
- GPIO port (4in, 4out, with Relay 12V/100mA)
- MIC In + SPK Out
- 2x dP + 1x DSUB-15 VGA
- 4x SMA Antenna hole (for eg. GPS, GSM/GPRS/3G, WLAN, Bluetooth)
- 2x SIM card slot
Drive bays 1x 2.5" SATA HDD/SSD drive bay
1x Cfast slot
Power supply 9~48V DC PSU included
- Power off Delay Time Setting by Software, Default 5min
- Backup Battery Kit (optional)
Scope of supply - FleetPC-5-B PC with RX-216GD (2x3Ghz), 4GB RAM, mounting
- 1x Pigtail + antenna for GPS
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Manual Download
Drivers Download
Test Tools Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 1 ratings
4 von 5 Sternen from ZcQCpMVt am 16.04.2022 |

PC ist sehr gut. Habe die beiden vorgeschlagene Erweiterung für WIFI und LTE mitbestellt. Allerdings:
- Für den Einbau des WIFI-Modul wird eine Kartenverlängerung benötigt, dan nur halbe größe (nicht erwähnt bzw. dabei, obwohl als vorgeschlagenges Erweiterungs-Kit angegeben. Muss separat gekauft werden)
- Software und Treiber müssen selbst gesucht werden. Für GPS ist im Paket kein Treiber vorhanden. Sucht man den Einbausatz VDB-810 separat auf dieser Seite, erhält man veraltete und unvollständige Treiber. Es wird benötgit u-center_v20.10 (Achtung: Neue Version 22.02 ist fehlerhaft) und ubloxGnss_SensorDriver_Windows. Google findet alles.
- Installation des Huawei_ME909u.-521_Driver für LTE läuft bei Windows 10 nicht ganz nach der Beschreibung ab. Wenn man sich auskennt, kann man aber die vorgegebne Installation durchaus abgeändert hinbekommen.

Die Inbetriebnahme einzelner Module war teilweise wegen der Recherche zu benötigten Treiber sehr zeitintensiv, dennoch bin ich im großen und ganzen mit dem Produkt sehr zu frieden.
Lieferung erfolgte sehr schnell. Rückfragen zu der Leiterplattenverlängerung für WIFI-Modul wurden schnell per eMail beantwortet.

Assignment of Antenna-Connection
ANT 1 = GPS (Please connect the included GPS Antenna to this Connector)

-- If you order additional to the System WLAN/Bluetooth or 3G/UMTS/LTE Device we will assemble the Antenna-Connectors as follow: --

ANT 2 = 3G/LTE/UMTS
ANT 3 + 4 = BT/WLAN
