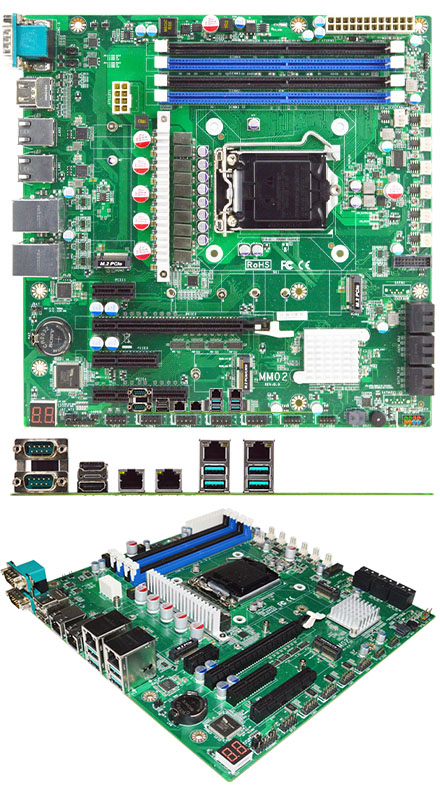

Jetway MM02-10 Micro-ATX (Intel Comet Lake-S Q470E, LGA1200) [4x LAN, 2x RS232]

Jetway MM02-10 Micro-ATX (Intel Comet Lake-S Q470E, LGA1200) [4x LAN, 2x RS232]
  • Intel Comet Lake-S !
  • Micro ATX !
  • 4x LAN !

  • Intel® LGA1200 Socket supports 10th Gen. Core Processor (Max. 95W)
  • Intel® Comet Lake-S Q470E Chip
  • Support 4* DDR4 2933/2666/2400MHz Long-DIMM up to 128GB
  • 1* Intel® i219LM GbE, 1* Intel® i210AT GbE, 2* i225LM 2.5GbE
  • 6* SATA III (6Gb/s) support RAID 0/1/5/10 & 2* M.2 (M-key), 1* M.2 (E-key) supports CNVi, 1* PCIe x16, 1* PCIe x8, 1* PCIe x4, 1* PCIe x1
  • 2* HDMI
  • 2* RS232/422/485, 4* RS232, 6* USB3.2 (Gen.2), 4* USB2.0
  • ATX Power Input
  • Micro ATX Form Factor (244 * 244 mm)






Share

429.00 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)

Add to cart
Model – MM02-10
– MM02-12 (TPM2.0)
Form Factor – Micro ATX (244 x 244 mm)
Processor System – Intel® LGA1200 Socket supports 10th Gen. Core Processor (Max 95W)
– Intel Q470E chipset
– AMI 128Mb Flash ROM BIOS
Expansion Slot – 1* M.2 E-key, 2230 (PCIe x1 /USB2.0 interface) support CNVi
– 1* PCIe x16
– 1* PCIe x8 (share with PCIe x16)
– 1* PCIe x4
– 1* PCIe x1
Memory – 4* Long DIMM DDR4 2933/2666/2400 MHz DRAM up to 128GB
Graphics – Intel® HD Graphics, shared memory
– 2* HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
– Support Dual Displays
Ethernet – 1* Intel® i219LM GbE & 1* Intel® i210AT GbE
– 2* Intel® i225LM 2.5GbE
Storage – 6* SATAIII (6.0Gb/s, support RAID 0/1/5/10) – 2* M.2 (M-key): 1* 2242/2280/22110 (PCIe x4 interface) support NVMe, 1* 2260/2280 (PCIe x2 interface)
Rear I/O – 2* HDMI
– 2* RJ45 (GbE)
– 2* RJ45 (2.5GbE)
– 4* USB3.2 (Gen.2)
– 2* COM (support RS232/422/485)
Internal I/O – 1* USB 3.2 (Gen.2)
– 4* USB 2.0
– 4* COM (RS232)
– 6* SATAIII (support RAID 0/1/5/10)
– 1* M.2 M-key 2242/2280/22110 (PCIe x4 interface) support NVMe
– 1* M.2 M-key 2260/2280 (PCIe x2 interface)
– 1* M.2 E-key 2230 (PCIe x1 /USB2.0 interface) support CNVi
– 1* GPIO (8-bit)
– 1* Chassis intrusion
– 1* SMBUS/I2C
– 1* AT mode
– 1* TPM2.0 (MM02-12 only)
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10 ~ 255min)
Power DC-IN 12V, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Linux
