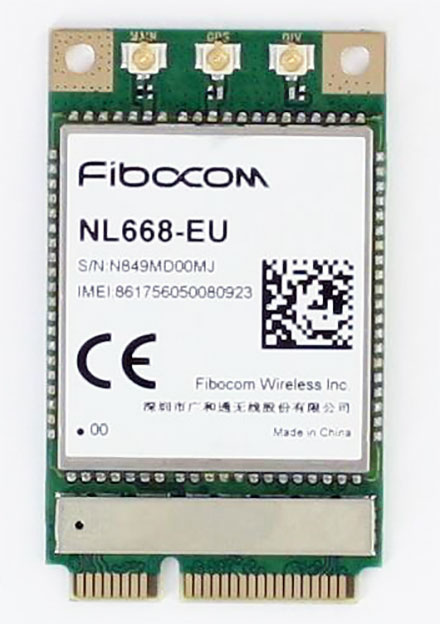

Fibocom NL668-EU Mini-PCIe Modem (4G/LTE 150/50 Mbit)

Fibocom NL668-EU Mini-PCIe Modem (4G/LTE 150/50 Mbit)
  • Full-size Mini-PCIe !
  • UMTS / 3G !
  • 4G / LTE !

Air Interface:4G, 3G, 2G
Region: Europe
Fibocom NL668-EU series is a LTE Cat 4 product for Europe.

NL668-EU LTE module, which is packaged by miniPCIe, support LTE FDD, WCDMA and GSM multiple frequency bands.

Product Specifications
Product Features
LTE FDD Band 1/3/5/7/8/20
WCDMA Band 1/5/8
GSM/GPRS/EDGE 850/900/1800MHz
Optional Operating Temperature -40°C to +85°C
Operating Voltage 3.3V~4.3V typical 3.8V
TX Power GSM850: 32.5 dBm±1dB
GSM900: 32.5 dBm±1dB
DCS1800: 29.5dBm±1dB
WCDMA: 23.5dBm±1dB
LTE FDD: 23.0dBm±1dB
AT Command Set 3GPP TS 27.007 and 27.005, and proprietary FI
[more]

Share

49.95 EUR
incl. 19% VAT, plus shipping
In Stock (92 pcs)

3 von 5 Sternen
1 ratings
Add to cart

Air Interface:4G, 3G, 2G
Region: Europe
Fibocom NL668-EU series is a LTE Cat 4 product for Europe.

NL668-EU LTE module, which is packaged by miniPCIe, support LTE FDD, WCDMA and GSM multiple frequency bands.

Product Specifications
Product Features
LTE FDD Band 1/3/5/7/8/20
WCDMA Band 1/5/8
GSM/GPRS/EDGE 850/900/1800MHz
Optional Operating Temperature -40°C to +85°C
Operating Voltage 3.3V~4.3V typical 3.8V
TX Power GSM850: 32.5 dBm±1dB
GSM900: 32.5 dBm±1dB
DCS1800: 29.5dBm±1dB
WCDMA: 23.5dBm±1dB
LTE FDD: 23.0dBm±1dB
AT Command Set 3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands

Data
LTE FDD 150Mbps DL/ 50Mbps UL
UMTS 384kbps DL/ 384 kbps UL
HSPA/HSPA+ 42Mbps DL/ 5.76Mbps UL
EDGE 296Kbps DL/ 236.8Kbps UL
GPRS 107Kbps DL/ 85.6Kbps UL

Function
MUX Basic Mode
SMS MO/MT Text and PDU modes
GNSS/LBS/Cell ID

Interfaces
SIM Card 1.8V/3.0V x1
USB 2.0
UART
PCM/I2S x1
GPIO
System Indicator
Analog Audio
Antenna Main/Div/GNSS

Driver
Driver Linux/ Android/ Windows

Data sheet Download (PDF)
Data sheet Print view
Documents Download
Drivers (Win7+10+11) Download
Drivers (Win7+10) [old] Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 3 von 5 Sternen
Average rating, based on 1 ratings
3 von 5 Sternen from lod.anton4 am 01.04.2023 |

Hi, I'm sorry I can't rate the Fibocom NL668-EU as it didn't work on my laptop.
For this reason I ask you if you can find and sell me, one of these:
Sierra Wireless MC7700, EM7700, MC7750 (always for the European area).
These models should work on my Thinkpad T430, but I had problems
in finding them on other websites

Update from :2023-04-01 09:31
Hi, I'm sorry I can't rate the Fibocom NL668-EU as it didn't work on my laptop.
For this reason I ask you if you can find and sell me, one of these:
Sierra Wireless MC7700, EM7700, MC7750 (always for the European area).
These models should work on my Thinkpad T430, but I had problems
in finding them on other websites
