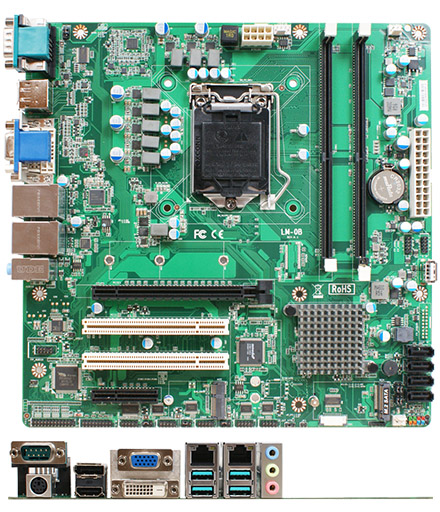

Jetway JLM0B-00 Micro-ATX (Intel Coffee Lake-S H310, LGA1151, 2x LAN, 1x COM)

Jetway JLM0B-00 Micro-ATX (Intel Coffee Lake-S H310, LGA1151, 2x LAN, 1x COM)
  • LGA1151 Socket !
  • H310 Chipset !
  • MicroATX !

  • Intel® LGA1151 Socket support 9/8th Gen. Core Processor (Max 95W)
  • Intel® Coffee Lake-S H310 Chipset
  • 2* DDR4 2666/2400/2133MHz SO-DIMM up to 64GB
  • Realtek HD Audio (LM0B-00 model)
  • 1* Intel® I219-V GbE, 1* Intel® i211AT GbE
  • 4* SATAIII (6Gb/s), 1* M.2 (M-key ), 1* M.2 (E-key) support CNVi, 1* PCI-E x16, 1* PCI-Ex4, 2* PCI
  • Support VGA / DVI-D / HDMI / DP dual display
  • 2* RS232/422/485 (COM1/2), 4* RS232, 4* USB3.1, 5* USB2.0
  • ATX Power Input
  • Micro ATX Form Factor (244 *244 mm)




Share

269.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
 Model – JLM0B-00
– JLM0B-0A (Without Audio)
 Form Factor – Micro ATX (244 * 244mm)
 Processor System – Intel LGA1151 Socket support 9/8th Gen. Core Processor (Max 95W)
– Intel H310s chipset
– AMI 128Mb Flash ROM BIOS
 Expansion Slot – 2* PCI
– 1* M.2 M-key (2242, Co-lay SATA4)
– 1* M.2 E-key (2230, support CNVi)
– 4* SATA (SATA4 Co-lay M.2)
– 1* PCIe x16, 1* PCIe x4
 Memory – 2* DDR4 2666/2400/2133MHz LONG DIMM up to 64GB
 Graphics – Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 1920×1080@60Hz)
– 1* HDMI 1.4 (Max Resolution: 4096×2304@24Hz)
– 1* DVI-D (Max Resolution: 4096×2304@24Hz)
– 1* DP (Max Resolution: 4096×2304@60Hz)
– Support Dual Displays
 Ethernet – 1* Intel I219-V GbE
– 1* Intel i211AT GbE
 Audio – Realtek HD audio (JLM0B-00 only)
 SATA – 4* SATAIII (6.0Gb/s)
 Rear I/O – 1* VGA
– 1* DVI-D
– 1* HDMI
– 1* DP
– 2* RJ45
– 4* USB3.1
– 1* RS232/422/485 (support 5/12V)
– 1* PS/2
– Line-in, Line-out, MIC
 Internal I/O – 4* USB 2.0, 1* USB2.0 (Erect)
– 5* COM (COM2: RS232/422/485, COM3-6: RS232, COM1-4: support 5/12V TTL)
– 4* SATAIII (6.0Gb/s, SATA4 Co-lay M.2 M-key)
– 1* M.2 M-key, 1* M.2 E-key
– 1* Parallel
– 1* GPIO (16 bit)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS/I2C
– 1* AT mode
– 1* TPM2.0 (option)
 Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
 Power ATX PWR (8+24 pin), AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Compliance – CE, FCC, RoHS, REACH
 Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
 OS Support – Windows 10, Linux
