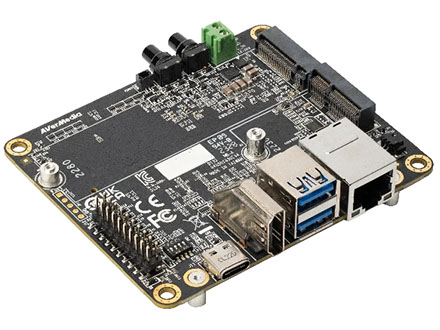

AVerMedia D133 CarrierBoard (für NVIDIA Jetson Orin NX/Nano)

AVerMedia D133 CarrierBoard (für NVIDIA Jetson Orin NX/Nano)
3D 360° View
  • NVidia Jetson !
  • Carrier Board !

AVerMedia’s D133 Carrier Board support powerful NVIDIA® Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities

D133 Carrier Board is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

  • Applies to NVIDIA® Jetson Orin NX/ Orin Nano module
  • 1 x GbE< [more]

    Share

179.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart

AVerMedia’s D133 Carrier Board support powerful NVIDIA® Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities

D133 Carrier Board is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

  • Applies to NVIDIA® Jetson Orin NX/ Orin Nano module
  • 1 x GbE
  • 2 x USB 3.2
  • 2 x M.2 key for SSD/wifi
  • 1 x HDMI output
  • 20-pin expansion header
  • Operating temperature: -40°C ~ 85°C (TBD)
  • Dimension: W: 90mm x L: 76mm x H: 1.6mm

Model

D133

Type

Carrier Board

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson Orin NX/ Orin Nano module

Networking

1 x GbE RJ-45
1 x M.2. key E 2230 for wifi

Display Output

1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano

Temperature

Operating temperature -40°C~85°C (TBD)
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs(Internal)

2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch

USB

1 x USB 2.0 type C for recovery
2 x USB 3.2 Type-A

Storage

1x M.2. key M 2280 for NVMe

Expansion Header

20 pins: 2x I2C, 1x UART, 9x GPIOs

Input Power

3.5mm Screw Terminal; 12V/5A, 9V~24V is recommended.

Power Cord

US/JP/EU/UK/TW/AU/CN (optional)

Thermal solution

Fan solution (optional)

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

W: 90mm x L: 76mm (TBD)
Weight: 70g (TBD)

Certifications

CE, FCC, KC(TBA)

Package

1x D133 Carrier board
DC IN jack cable
screws
