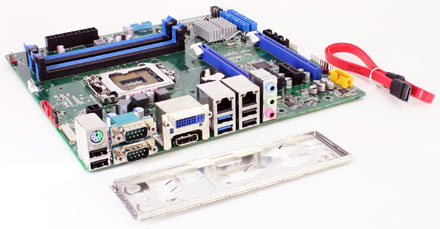

Mitac PH10LU Micro-ATX (Intel Q87, LGA1150) [1x PCIe x16, 2x PCIe x4]

  • Support 4th generation (Haswell) 22nm Intel® Core™ i7, i5, i3 processors
  • Single channel DDR3 with four connectors for MAX. 32GB memory
  • LVDS for embedded system (Optional)
  • Features Dual Com Ports
  • Integrated Six-channel High Definition audio
  • Features dual high speed Gigabit Ethernet connection
  • Support up to four ports USB3.0
  • Eight Hi-Speed USB2.0 ports support
  • One PCI connector for the future Add-in card (Optional)
  • One PCI Express Mini Card connector for expansion (Optional)


Share

89.00 EUR
incl. 19% VAT, plus shipping
In Stock (5 pcs)

Add to cart
Form Factor Micro-ATX (244 millimeters [9.6 inches] x 244 millimeters [9.6 inches])
Processor 4rd generation Intel® Core processor family with up to 95 W TDP in an LGA1150 socket
Main Memory
Support for DDR3 1066/1333/1600 MHz SO-DIMMs (DDR3 1333 MHz and DDR3 1600 MHz SO-DIMMs operate at 1066 MHz only)
Support for up to 32 GB of system memory
240-pin DDR3 SO-DIMM 4
Chipset Intel® Q87 Platform Controller Hub (PCH)
Integrated Graphics Intel® Graphics Media Accelerator 4600 (Intel® GMA 4600)
External Graphics External graphics support provided through the PCIe 3.0 x16 bus connector
Audio RealTek* ALC662/888 audio codec for 5.1 (6-channel) High Definition Audio (HD Audio) and AC ’97 Audio.Front panel microphone/headphone header with support for HD Audio or AC ’97 Audio
Legacy I/O Legacy I/O Controller (Nuvoton* NCT6104D) that provides:Hardware management support
SSerial Port (Rear IO) 2
Serial Port (On board) 2
Parallel port via an onboard header 1
Expansion Capabilities
PCIe 3.0 x16 (Blue) 1
PCIe 2.0 x1 (Black) Either Option
PCIe 2.0 x1 (Black) 1
PCIe 2.0 x16 (x4 Lanes) 1
PCI Express* Full-Mini Card slot with Half-Mini Card support Either Option
Peripheral Interfaces
SUSB 3.0 back panel connectors (blue) 2
USB 2.0 back panel connectors (black) 4
PUSB 3.0 front panel ports 2 (Headers)
PUSB 2.0 front panel ports 4 (Headers)
Serial ATA (SATA) 6.0 Gb/s interfaces 6
Hardware Monitor Subsystem Hardware monitoring through the Nuvoton* NCT6104D legacy I/O controller, including:
Remote thermal sensor
4-pin system fan header
LAN Support
Intel® I217 Gigabit (10/100/1000 Mb/s) LAN
Intel® I210 Gigabit (10/100/1000 Mb/s) LAN
BIOS AMI UEFI BIOS Support for Advanced Configuration and Power Interface (ACPI)
Instantly Available PC Technology
SSupport for PCI Express Revision 3.0
Wake on USB, PCI Express, LAN, serial, PS/2, and front panel
Power Requirement ATX12V
Environment
Operating Temperature: 0 °C to +50 °C
Storage Temperature: -20°C to +70°C
Safety
CE
FCC
UL
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Specifications Download (PDF)
Manual [EN] Download
