CTF846-A - VGA 8" TFT - Video - Audio [LED-Backlight] (without TS)

CTF846-<b>A</b> - VGA 8" TFT - Video -  Audio [<b>LED-Backlight</b>] (without TS)
3D 360° View
  • LED-Backlight !
  • Audio speakers !
  • Auto-PowerOn !
  • 1000 nits !

New on 30.09.2022:
- 1000 nits instead of 600

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

Difference of CTF-846-A comparing to CTF846 : No AutoDimmer, No USB-Hub, 12V instead of 12/24VDC !

[more]

Share

319.00 EUR
incl. 19% VAT, plus shipping
Available in 1-3 days

4 von 5 Sternen
6 ratings
Add to cart
Compare

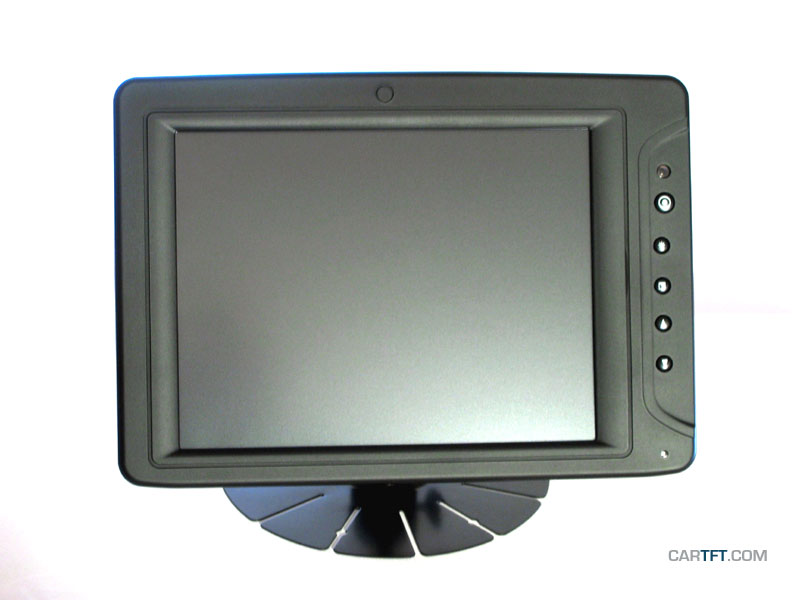

Front
Rear
Side
LCD Size 8"
Aspect Ratio 4:3
VGA resolutions 640x480-1920x1080
Native resolution 800x600
Dot resolution 2400x600
Brightness 600
VGA Input D-SUB 15
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen
Case color black
Power Input 12-24VDC
Power Consumption 9W
Case size 232 x 162 x 36 mm
Visible area 162 x 122 mm
Certificates CE, E1
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
no Headrest mount
yes TS pencil
no Earphone
no Adjustable video aspect
no Mirrorable video
yes Reverse camera input

New on 30.09.2022:
- 1000 nits instead of 600

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

Difference of CTF-846-A comparing to CTF846 : No AutoDimmer, No USB-Hub, 12V instead of 12/24VDC !

The new CTF-846-A TFT-Display (succeesor of the CTF845/MM500 model) is the latest development from CarTFT.com and comes with many nice features. In any case it is the ideal display- and input-unit for your Laptop, CarPC or HTPC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has among other features integrated speaker and an rear camera input.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTF-846-A can be used with any PC/MAC with VGA-port.



Spezifications
Screen size 8" digital
Aspect Ratio 4:3 wide TFT screen
Dot Resolution 2400x600= 1,440,000 dots
Physical Resolution 800x600
Supported Resolutions 640x480-1920x1080
Color configuration RGB stripe
Power input DC 12VDC
Power consumption max. 10W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display Case : 232mm x 162mm x 36mm
Display : 162 x 122 mm
Video input signal 1.0Vp-p, composite video
Brightness 1000 cd/m²
Contrast 500:1
Vibration IEC68-2-6
Operating Temperature -30° to 85°C
Features Full function OSD control (englisch)
Built-in speaker
VESA compliant mounting holes + metal rail
Automatic switching to rear camera (signal sensing on AV3)

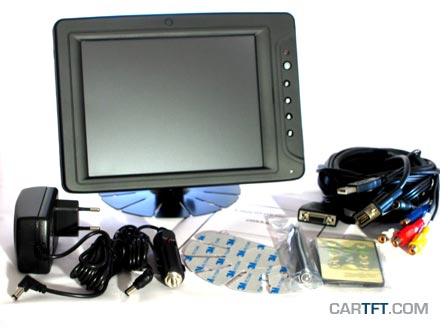

What is included ? - 8" VGA TFT with Video/Audio-support
- Infrared Remote Control
- Car dash mounting bracket
- VGA/Video/Audio-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Manual
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 6 ratings
3 von 5 Sternen from Angelides am 08.03.2012 |

Bildqualität ist wie erwartet gut. Anschluß über VGA problemlos. Allerdings ist der Kabelbaum gewöhnungsbedürftig. Da sind mindestens 10 Kabel, die man alle mit dran hängen hat, egal wieviele Anschlüsse man verwendet - inklusive Stromversorgung, die auch untrennbar mit dem Kabelbaum verbunden ist. Keine glückliche Lösung. Da ich das Gerät auf der Bühne verwende, sieht das nciht besonders hübsch aus.

5 von 5 Sternen from rudiwibi@freenet.de am 13.12.2011 |
4 von 5 Sternen from swap am 04.06.2010 |

Excellentes Bild, scharf und kontrastreich. Gehäuserahmen nach meinem Geschmack etwas zu breit und Audio zu leise im direkten Vergleich zum Vorgänger NoName 8`er. An der Hauptaufgabe "Bilddarstellung" gibt es nichts auszusetzen.

4 von 5 Sternen from A-ToWn-sTyLe am 24.07.2009 | See all my comments

Guter bildschirm duch die BacklightTechnologie sehr gutes bild!

3 von 5 Sternen from teambox am 02.12.2008 |

It's a great little screen. I use it for computer installation or maintenance. The only bad point is the cables. Too much, too big. I will appreciate to have only one vga and one electricity supply.
